Reformatting a RockAIR SD Card

At times, we would recommend you to perform an SD Card reformat and install the latest firmware through this method to allow the files installed manually through the card and resolve any potential issue you may be facing.

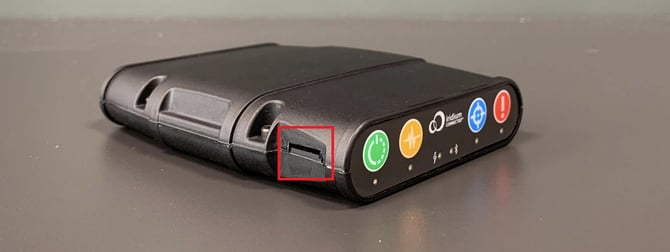

The SD card slot can be accessed by removing the protective rubber sleeve of the RockAIR. On the left side, you will find the slot.



s3.amazonaws.comcdn.freshdesk.comdatahelpdeskattachmentsproduction2043400406467originaloFYkMwaxs2qpw4JC2XUeO_kCQEV7cB4udQ

You can simply push the SD card in slightly with your finger which will trigger the unlocking mechanism which then pushes the card out.

  • Connect the micro SD card to a PC using an SD Card reader.
  • Format the SD card and select FAT32.
  • Download the file at the bottom of this page (GRIFFIN1.bin), and copy it onto the SD card. (If you have any existing "GRIFFIN1.bin" files on your computer please delete these first before downloading the one on this page.)

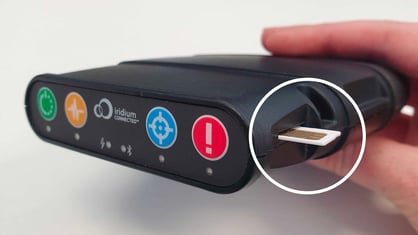

  • Reinsert the SD Card into the RockAIR. The metal part must be facing upwards and the cutout corner needs to go in first.s3.amazonaws.comcdn.freshdesk.comdatahelpdeskattachmentsproduction2043380296037originalAhUHBIanGaQoFdFtrdRGdfyHc0jqHC5OVw
  • Put back the protective rubber sleeve.
  • Turn on the unit.
    • Both the charging and bluetooth LEDs will flash in an alternate manner, to indicate the firmware is being updated.
  • All six LEDs will then flash as the device restarts with the new firmware and the blue LED light will solely flash slowly.
    • Please wait for about 10-15mins
  • Once the unit shows the middle two LED's (charging and bluetooth) as solid green, the device is ready to be soft reset.
  • While the device is outside/has a clear view of the sky, please turn on the device and it will be ready to use.
IMPORTANT NOTE: If the blue light is flashing by itself please wait
            for about 10mins (until the device has steady green light)
